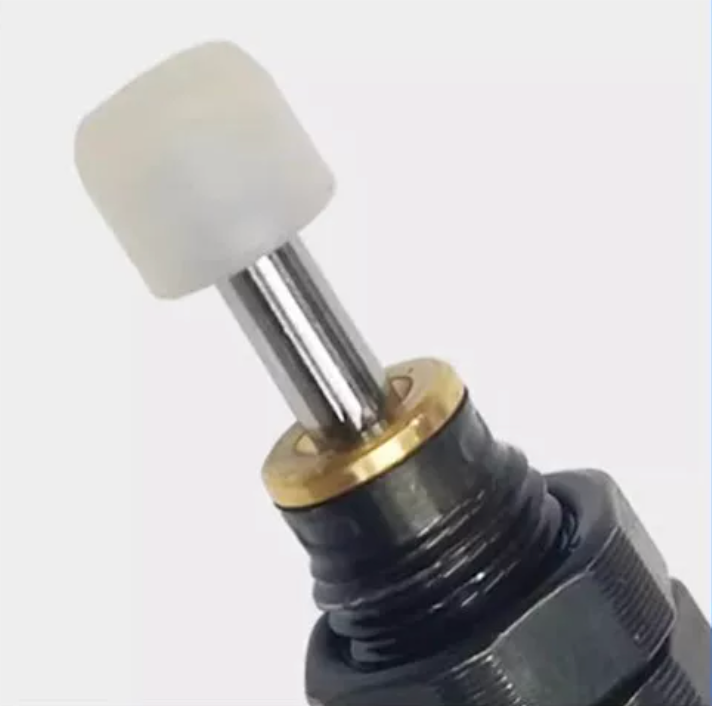

Airtac ACA1420-2 ACA Series Hydraulic Shock Absorber

Model-specific summary: The Airtac ACA1420-2 is a self-compensating hydraulic shock absorber with a M14×1.5 fully threaded body, 20 mm working stroke and rated absorption of 25 N·m per cycle / 45,000 N·m/h. It is designed to convert impact energy into controlled deceleration at machine end stops.

Key specifications

Construction and damping advantages

• The integrated outer body receives QPQ treatment for wear and corrosion resistance.
• Full-body threading simplifies axial positioning, locknut adjustment and heat dissipation.
• A high-hardness stainless steel piston rod improves impact and corrosion resistance.
• A dedicated oil-filling process and special damping lubricant support stable energy absorption across a broad temperature range.
• The compact body provides comparatively high energy capacity for machine-stop applications.

Installation, adjustment and troubleshooting

1. Calculate both energy per impact and accumulated energy per hour; both must remain within the listed ratings.
2. Keep impact alignment within 3° of the piston-rod axis and tighten the M14×1.5 body to no more than 11 N·m.
3. Set the machine stop so motion ends approximately 1 mm before the absorber bottoms out.
4. Do not keep the piston rod continuously compressed and keep external water or oil away from the rod.
5. If rebound occurs at the beginning of the stroke, review a higher-speed/lighter-load code; if rebound occurs at the end, review a lower-speed/heavier-load code.

Quick selection answer

ACA1420-2 is a M14×1.5, 20 mm stroke hydraulic shock absorber rated at 25 N·m per cycle and 45,000 N·m/h.

Typical applications

Used to decelerate slides, transfer mechanisms, indexing tables, machine stops and automated handling equipment while reducing impact and vibration.

Selection and compatibility notes

• Calculate effective moving mass, impact velocity, energy per cycle and hourly energy before selection. Keep side load within 3° and verify alignment.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is ACA1420-2 used for?

Used to decelerate slides, transfer mechanisms, indexing tables, machine stops and automated handling equipment while reducing impact and vibration.

How does this model differ from related products?

ACA models use a speed/load code; ACJ models provide an adjustable design when the impact conditions require field adjustment.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC ACA Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac ACJ1412 ACJ Series Hydraulic Shock Absorber

Model-specific summary: The Airtac ACJ1412 is a field-adjustable hydraulic shock absorber with a M14×1.5 fully threaded body, 12 mm working stroke and rated absorption of 20 N·m per cycle / 36,000 N·m/h. It is designed to convert impact energy into controlled deceleration at machine end stops.

Key specifications

Construction and damping advantages

• The integrated outer body receives QPQ treatment for wear and corrosion resistance.
• Full-body threading simplifies axial positioning, locknut adjustment and heat dissipation.
• A high-hardness stainless steel piston rod improves impact and corrosion resistance.
• A dedicated oil-filling process and special damping lubricant support stable energy absorption across a broad temperature range.
• The compact body provides comparatively high energy capacity for machine-stop applications.

Installation, adjustment and troubleshooting

1. Calculate both energy per impact and accumulated energy per hour; both must remain within the listed ratings.
2. Keep impact alignment within 3° of the piston-rod axis and tighten the M14×1.5 body to no more than 11 N·m.
3. Set the machine stop so motion ends approximately 1 mm before the absorber bottoms out.
4. Do not keep the piston rod continuously compressed and keep external water or oil away from the rod.
5. If rebound occurs at the beginning of the stroke, adjust toward the softer setting; if rebound occurs near the end, adjust toward the harder setting. Make small changes and retest.

Quick selection answer

ACJ1412 is a M14×1.5, 12 mm stroke hydraulic shock absorber rated at 20 N·m per cycle and 36,000 N·m/h.

Typical applications

Used to decelerate slides, transfer mechanisms, indexing tables, machine stops and automated handling equipment while reducing impact and vibration.

Selection and compatibility notes

• Calculate effective moving mass, impact velocity, energy per cycle and hourly energy before selection. Keep side load within 3° and verify alignment.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is ACJ1412 used for?

Used to decelerate slides, transfer mechanisms, indexing tables, machine stops and automated handling equipment while reducing impact and vibration.

How does this model differ from related products?

ACJ models provide adjustable automatic compensation; ACA models use standard automatic compensation with a speed/load code selected for the application.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC ACJ Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac MA20X15SCA MA Series Stainless Steel Mini Pneumatic Cylinder

Model-specific summary: The Airtac MA20X15SCA is a compact double-acting MA Series mini cylinder with a 20 mm bore, 15 mm stroke, built-in magnet and CA swing-tail rear cover. The stainless steel barrel and short stroke make it suitable for compact machine mechanisms that need controlled linear movement and position sensing.

Key specifications

Construction and operating advantages

• High-precision stainless steel tube provides strength and corrosion resistance for general industrial environments.
• Front and rear covers use a riveted rolled connection with the barrel for a compact and reliable assembly.
• The profiled two-way piston seal has grease-retaining geometry for stable movement.
• A fixed front-cover bumper reduces impact when the cylinder changes direction.
• CA, U and CM rear-cover families support different pivoting and mounting arrangements.
• AirTAC specifies magnets across the MA/ MAC series; the sensor itself is selected separately.

Installation and commissioning

1. Confirm that the CA swing-tail orientation matches the machine pivot geometry and leaves clearance throughout the stroke.
2. Remove pipe debris before connection and use filtered air.
3. Avoid side loading: misalignment can bend the piston rod and damage its end thread.
4. Protect the cylinder from dust, moisture, weld spatter and freezing condensate.
5. Run an unloaded commissioning cycle before applying the production load.

Quick selection answer

MA20X15SCA is a double-acting mini pneumatic cylinder with a 20 mm bore, 15 mm stroke, magnetic piston and CA swing-tail rear cover.

Typical applications

Designed for compact packaging machinery, pick-and-place units, light clamping, indexing and short-stroke automation where installation space is limited.

Selection and compatibility notes

• Confirm available force at the actual working pressure, port thread, rear-cover orientation and compatible sensor before installation.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is MA20X15SCA used for?

Designed for compact packaging machinery, pick-and-place units, light clamping, indexing and short-stroke automation where installation space is limited.

How does this model differ from related products?

Compared with an SC standard tie-rod cylinder, the MA mini cylinder uses a slimmer stainless steel barrel and is intended for lighter, more compact mechanisms.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC MA Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac SC80X75 SC Series Tie-Rod Pneumatic Cylinder

Model-specific summary: The Airtac SC80X75 is a double-acting SC Series standard tie-rod air cylinder with a 80 mm bore and 75 mm stroke, without a magnetic piston code. It is intended for repeatable linear extension and retraction in general industrial machinery.

Key specifications

Construction and operating advantages

• Front and rear covers are joined to the aluminum barrel by tie rods for a rigid, service-proven structure.
• The profiled two-way piston seal is compact and incorporates grease-retaining geometry.
• Air cushioning at both ends can be adjusted for smoother end-of-stroke deceleration.
• The SC body is shorter than an ISO 15552 cylinder of the same bore, while retaining conventional tie-rod construction.
• Multiple mounting accessories support foot, flange, clevis and trunnion-style machine layouts.
• High-temperature seal configurations are available at series level for operation up to 150 °C; this is not implied by the standard model code shown here.

Installation and commissioning

1. Size the cylinder with sufficient output margin for actual load variation; theoretical force alone is not the usable machine force.
2. Flush the air line before connection and supply air filtered to 40 μm or finer.
3. Protect the cylinder from heavy dust, water droplets, oil mist, weld spatter and freezing condensate.
4. During initial no-load testing, start with conservative cushion adjustment and open gradually to avoid excessive impact.
5. Avoid unsupported side load on the piston rod and verify alignment over the full 75 mm travel.

Quick selection answer

SC80X75 is a 80 mm bore, 75 mm stroke, double-acting standard pneumatic cylinder.

Typical applications

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

Selection and compatibility notes

• Catalog-valid standard configuration. The catalog pressure and speed limits do not replace application-specific force and kinetic-energy calculations.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is SC80X75 used for?

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

How does this model differ from related products?

Compared with a compact cylinder, the SC tie-rod design is better suited to longer strokes and conventional industrial mounting. Bore and stroke must still be sized from required force and travel.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC SC Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac SC100X125 SC Series Tie-Rod Pneumatic Cylinder

Model-specific summary: The Airtac SC100X125 is a double-acting SC Series standard tie-rod air cylinder with a 100 mm bore and 125 mm stroke, without a magnetic piston code. It is intended for repeatable linear extension and retraction in general industrial machinery.

Key specifications

Construction and operating advantages

• Front and rear covers are joined to the aluminum barrel by tie rods for a rigid, service-proven structure.
• The profiled two-way piston seal is compact and incorporates grease-retaining geometry.
• Air cushioning at both ends can be adjusted for smoother end-of-stroke deceleration.
• The SC body is shorter than an ISO 15552 cylinder of the same bore, while retaining conventional tie-rod construction.
• Multiple mounting accessories support foot, flange, clevis and trunnion-style machine layouts.
• High-temperature seal configurations are available at series level for operation up to 150 °C; this is not implied by the standard model code shown here.

Installation and commissioning

1. Size the cylinder with sufficient output margin for actual load variation; theoretical force alone is not the usable machine force.
2. Flush the air line before connection and supply air filtered to 40 μm or finer.
3. Protect the cylinder from heavy dust, water droplets, oil mist, weld spatter and freezing condensate.
4. During initial no-load testing, start with conservative cushion adjustment and open gradually to avoid excessive impact.
5. Avoid unsupported side load on the piston rod and verify alignment over the full 125 mm travel.

Quick selection answer

SC100X125 is a 100 mm bore, 125 mm stroke, double-acting standard pneumatic cylinder.

Typical applications

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

Selection and compatibility notes

• Catalog-valid standard configuration. The catalog pressure and speed limits do not replace application-specific force and kinetic-energy calculations.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is SC100X125 used for?

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

How does this model differ from related products?

Compared with a compact cylinder, the SC tie-rod design is better suited to longer strokes and conventional industrial mounting. Bore and stroke must still be sized from required force and travel.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC SC Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac SC40X90S SC Series Tie-Rod Pneumatic Cylinder

Model-specific summary: The Airtac SC40X90S is a double-acting SC Series standard tie-rod air cylinder with a 40 mm bore and 90 mm stroke, plus a magnetic piston for compatible position sensors. It is intended for repeatable linear extension and retraction in general industrial machinery.

Key specifications

Construction and operating advantages

• Front and rear covers are joined to the aluminum barrel by tie rods for a rigid, service-proven structure.
• The profiled two-way piston seal is compact and incorporates grease-retaining geometry.
• Air cushioning at both ends can be adjusted for smoother end-of-stroke deceleration.
• The SC body is shorter than an ISO 15552 cylinder of the same bore, while retaining conventional tie-rod construction.
• Multiple mounting accessories support foot, flange, clevis and trunnion-style machine layouts.
• The magnetic piston allows compatible sensors to be mounted on the cylinder tie rods for end-position feedback.
• High-temperature seal configurations are available at series level for operation up to 150 °C; this is not implied by the standard model code shown here.

Installation and commissioning

1. Size the cylinder with sufficient output margin for actual load variation; theoretical force alone is not the usable machine force.
2. Flush the air line before connection and supply air filtered to 40 μm or finer.
3. Protect the cylinder from heavy dust, water droplets, oil mist, weld spatter and freezing condensate.
4. During initial no-load testing, start with conservative cushion adjustment and open gradually to avoid excessive impact.
5. Avoid unsupported side load on the piston rod and verify alignment over the full 90 mm travel.

Quick selection answer

SC40X90S is a 40 mm bore, 90 mm stroke, double-acting standard pneumatic cylinder with a magnetic piston.

Typical applications

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

Selection and compatibility notes

• Non-standard catalog stroke; 90 mm is within the SC40 maximum stroke range. Confirm made-to-order availability. The catalog pressure and speed limits do not replace application-specific force and kinetic-energy calculations.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is SC40X90S used for?

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

How does this model differ from related products?

Compared with a compact cylinder, the SC tie-rod design is better suited to longer strokes and conventional industrial mounting. Bore and stroke must still be sized from required force and travel.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC SC Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac SC63X125S SC Series Tie-Rod Pneumatic Cylinder

Model-specific summary: The Airtac SC63X125S is a double-acting SC Series standard tie-rod air cylinder with a 63 mm bore and 125 mm stroke, plus a magnetic piston for compatible position sensors. It is intended for repeatable linear extension and retraction in general industrial machinery.

Key specifications

Construction and operating advantages

• Front and rear covers are joined to the aluminum barrel by tie rods for a rigid, service-proven structure.
• The profiled two-way piston seal is compact and incorporates grease-retaining geometry.
• Air cushioning at both ends can be adjusted for smoother end-of-stroke deceleration.
• The SC body is shorter than an ISO 15552 cylinder of the same bore, while retaining conventional tie-rod construction.
• Multiple mounting accessories support foot, flange, clevis and trunnion-style machine layouts.
• The magnetic piston allows compatible sensors to be mounted on the cylinder tie rods for end-position feedback.
• High-temperature seal configurations are available at series level for operation up to 150 °C; this is not implied by the standard model code shown here.

Installation and commissioning

1. Size the cylinder with sufficient output margin for actual load variation; theoretical force alone is not the usable machine force.
2. Flush the air line before connection and supply air filtered to 40 μm or finer.
3. Protect the cylinder from heavy dust, water droplets, oil mist, weld spatter and freezing condensate.
4. During initial no-load testing, start with conservative cushion adjustment and open gradually to avoid excessive impact.
5. Avoid unsupported side load on the piston rod and verify alignment over the full 125 mm travel.

Quick selection answer

SC63X125S is a 63 mm bore, 125 mm stroke, double-acting standard pneumatic cylinder with a magnetic piston.

Typical applications

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

Selection and compatibility notes

• Catalog-valid standard configuration. The catalog pressure and speed limits do not replace application-specific force and kinetic-energy calculations.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is SC63X125S used for?

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

How does this model differ from related products?

Compared with a compact cylinder, the SC tie-rod design is better suited to longer strokes and conventional industrial mounting. Bore and stroke must still be sized from required force and travel.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC SC Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac SC63X500S SC Series Tie-Rod Pneumatic Cylinder

Model-specific summary: The Airtac SC63X500S is a double-acting SC Series standard tie-rod air cylinder with a 63 mm bore and 500 mm stroke, plus a magnetic piston for compatible position sensors. It is intended for repeatable linear extension and retraction in general industrial machinery.

Key specifications

Construction and operating advantages

• Front and rear covers are joined to the aluminum barrel by tie rods for a rigid, service-proven structure.
• The profiled two-way piston seal is compact and incorporates grease-retaining geometry.
• Air cushioning at both ends can be adjusted for smoother end-of-stroke deceleration.
• The SC body is shorter than an ISO 15552 cylinder of the same bore, while retaining conventional tie-rod construction.
• Multiple mounting accessories support foot, flange, clevis and trunnion-style machine layouts.
• The magnetic piston allows compatible sensors to be mounted on the cylinder tie rods for end-position feedback.
• High-temperature seal configurations are available at series level for operation up to 150 °C; this is not implied by the standard model code shown here.

Installation and commissioning

1. Size the cylinder with sufficient output margin for actual load variation; theoretical force alone is not the usable machine force.
2. Flush the air line before connection and supply air filtered to 40 μm or finer.
3. Protect the cylinder from heavy dust, water droplets, oil mist, weld spatter and freezing condensate.
4. During initial no-load testing, start with conservative cushion adjustment and open gradually to avoid excessive impact.
5. Avoid unsupported side load on the piston rod and verify alignment over the full 500 mm travel.

Quick selection answer

SC63X500S is a 63 mm bore, 500 mm stroke, double-acting standard pneumatic cylinder with a magnetic piston.

Typical applications

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

Selection and compatibility notes

• Catalog-valid standard configuration. The catalog pressure and speed limits do not replace application-specific force and kinetic-energy calculations.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is SC63X500S used for?

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

How does this model differ from related products?

Compared with a compact cylinder, the SC tie-rod design is better suited to longer strokes and conventional industrial mounting. Bore and stroke must still be sized from required force and travel.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC SC Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

Airtac SC80X650S SC Series Tie-Rod Pneumatic Cylinder

Model-specific summary: The Airtac SC80X650S is a double-acting SC Series standard tie-rod air cylinder with a 80 mm bore and 650 mm stroke, plus a magnetic piston for compatible position sensors. It is intended for repeatable linear extension and retraction in general industrial machinery.

Key specifications

Construction and operating advantages

• Front and rear covers are joined to the aluminum barrel by tie rods for a rigid, service-proven structure.
• The profiled two-way piston seal is compact and incorporates grease-retaining geometry.
• Air cushioning at both ends can be adjusted for smoother end-of-stroke deceleration.
• The SC body is shorter than an ISO 15552 cylinder of the same bore, while retaining conventional tie-rod construction.
• Multiple mounting accessories support foot, flange, clevis and trunnion-style machine layouts.
• The magnetic piston allows compatible sensors to be mounted on the cylinder tie rods for end-position feedback.
• High-temperature seal configurations are available at series level for operation up to 150 °C; this is not implied by the standard model code shown here.

Installation and commissioning

1. Size the cylinder with sufficient output margin for actual load variation; theoretical force alone is not the usable machine force.
2. Flush the air line before connection and supply air filtered to 40 μm or finer.
3. Protect the cylinder from heavy dust, water droplets, oil mist, weld spatter and freezing condensate.
4. During initial no-load testing, start with conservative cushion adjustment and open gradually to avoid excessive impact.
5. Avoid unsupported side load on the piston rod and verify alignment over the full 650 mm travel.

Quick selection answer

SC80X650S is a 80 mm bore, 650 mm stroke, double-acting standard pneumatic cylinder with a magnetic piston.

Typical applications

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

Selection and compatibility notes

• Non-standard catalog stroke; 650 mm is within the SC80 maximum stroke range. Confirm made-to-order availability. The catalog pressure and speed limits do not replace application-specific force and kinetic-energy calculations.
• Confirm the complete model code, installation space and operating conditions before purchase.
• Product selection must be verified against the machine load, speed, duty cycle and safety requirements.

Frequently asked questions

What is SC80X650S used for?

Suitable for packaging machinery, conveyors, clamping fixtures, material handling equipment and general industrial automation requiring linear motion.

How does this model differ from related products?

Compared with a compact cylinder, the SC tie-rod design is better suited to longer strokes and conventional industrial mounting. Bore and stroke must still be sized from required force and travel.

What should be checked before ordering?

Check the model code, dimensions, operating conditions, mounting method and required accessories. Refer to the manufacturer catalog drawing for final engineering approval.

Technical reference

View the official AirTAC SC Series product reference

Technical content reviewed against the AirTAC 2026 product catalog. Last updated: 2026-08-20. AirTAC is the product manufacturer and trademark owner; this page is an independent product listing and does not claim to be the official AirTAC website or an authorized distributor.

AirTAC LSH15HN1X180S30AN-M4 LSH15 Standard Linear Guide Assembly

Model-specific overview: Complete LSH Series standard linear-guide assembly: size 15, H square standard block, one block, 180 mm rail length, 30 mm head-hole offset, no preload, normal accuracy and M4 grease nipple.

Key attributes

Selection and installation notes

• Match the complete model code; suffixes may change thread, voltage, sensor, cushion, mounting or wiring.
• Flush piping and use filtered air within the official series limits.
• Check load, speed, duty cycle and environment before installation.
• For replacement work, compare the circuit symbol and dimensional drawing—not only the series name.

Typical applications

Industrial automation, packaging machinery, assembly equipment, material handling and pneumatic machine control, subject to the verified series specification.

Quick answer

LSH15HN1X180S30AN-M4 is an AirTAC lsh15 standard linear guide assembly. The order-critical details are 15-size rail; H square block; M4 grease nipple, mechanical linear guide — no voltage, and 1 standard block; 180 mm rail; 30 mm head-hole offset; a no preload; n normal accuracy; natural finish; upper-lock rail.

PDF datasheet

Download the corresponding AirTAC PDF datasheet

Prepared from the AirTAC 2026A product database and official AirTAC technical documentation. Updated 2026-08-23. Independent product listing; no official or authorized-distributor status is claimed.

AirTAC MI12X5SCA 12 mm Bore × 5 mm Stroke ISO 6432 Mini Cylinder

Model-specific overview: ISO 6432 stainless-steel-body mini pneumatic cylinder with 12 mm bore and 5 mm stroke. The S option provides a piston magnet for position sensing, while CA identifies the pivot-style rear-cover mounting configuration.

Key attributes

Selection and installation notes

• Match the complete model code; suffixes may change thread, voltage, sensor, cushion, mounting or wiring.
• Flush piping and use filtered air within the official series limits.
• Check load, speed, duty cycle and environment before installation.
• For replacement work, compare the circuit symbol and dimensional drawing—not only the series name.

Typical applications

Industrial automation, packaging machinery, assembly equipment, material handling and pneumatic machine control, subject to the verified series specification.

Quick answer

MI12X5SCA is an AirTAC 12 mm bore × 5 mm stroke iso 6432 mini cylinder. The order-critical details are M5 pneumatic ports; verify fitting thread against drawing, double-acting pneumatic cylinder — no voltage, and 12 mm bore; 5 mm stroke; s magnet; ca pivot-type rear cover.

PDF datasheet

Download the corresponding AirTAC PDF datasheet

Prepared from the AirTAC 2026A product database and official AirTAC technical documentation. Updated 2026-08-23. Independent product listing; no official or authorized-distributor status is claimed.

AirTAC US98A040025200MBK Pneumatic Air Tubing

Model-specific overview: Pneumatic tubing or push-in connection component. Confirm tube OD/ID, material, colour, length, thread and orientation.

Key attributes

Selection and installation notes

• Match the complete model code; suffixes may change thread, voltage, sensor, cushion, mounting or wiring.
• Flush piping and use filtered air within the official series limits.
• Check load, speed, duty cycle and environment before installation.
• For replacement work, compare the circuit symbol and dimensional drawing—not only the series name.

Typical applications

Industrial automation, packaging machinery, assembly equipment, material handling and pneumatic machine control, subject to the verified series specification.

Quick answer

US98A040025200MBK is an AirTAC pneumatic air tubing. The order-critical details are Tube and thread/dimension sizes encoded by model, pneumatic — no voltage, and us tubing/fitting configuration.

PDF datasheet

Download the corresponding AirTAC PDF datasheet

Prepared from the AirTAC 2026A product database and official AirTAC technical documentation. Updated 2026-08-23. Independent product listing; no official or authorized-distributor status is claimed.

AirTAC SDR200-08 SDR200 Compact Air Pressure Regulator

Model-specific overview: Compact piston-operated air regulator with PT/Rc 1/4-inch ports. Standard regulating range is 0.05–0.9 MPa, proof pressure 1.5 MPa and operating temperature −20 to 70 °C without freezing.

Key attributes

Selection and installation notes

• Match the complete model code; suffixes may change thread, voltage, sensor, cushion, mounting or wiring.
• Flush piping and use filtered air within the official series limits.
• Check load, speed, duty cycle and environment before installation.
• For replacement work, compare the circuit symbol and dimensional drawing—not only the series name.

Typical applications

Industrial automation, packaging machinery, assembly equipment, material handling and pneumatic machine control, subject to the verified series specification.

Quick answer

SDR200-08 is an AirTAC sdr200 compact air pressure regulator. The order-critical details are PT / Rc 1/4 inch (08); G or NPT only when explicitly suffixed, pneumatic regulator — no voltage, and standard pressure type; piston-operated; bracket and pressure gauge are optional.

PDF datasheet

Download the corresponding AirTAC PDF datasheet

Prepared from the AirTAC 2026A product database and official AirTAC technical documentation. Updated 2026-08-23. Independent product listing; no official or authorized-distributor status is claimed.

AirTAC 2V130 2V130 Series 2/2-Way Fluid Solenoid Valve

Model-specific overview: Series-level 2V130 normally closed 2/2-way fluid solenoid valve code. A complete orderable model must add port size, coil voltage and any thread/connector suffix. Working pressure is 0.05–1.0 MPa; nominal orifice is 13 mm.

Key attributes

Selection and installation notes

• Match the complete model code; suffixes may change thread, voltage, sensor, cushion, mounting or wiring.
• Flush piping and use filtered air within the official series limits.
• Check load, speed, duty cycle and environment before installation.
• For replacement work, compare the circuit symbol and dimensional drawing—not only the series name.

Typical applications

Industrial automation, packaging machinery, assembly equipment, material handling and pneumatic machine control, subject to the verified series specification.

Quick answer

2V130 is an AirTAC 2v130 series 2/2-way fluid solenoid valve. The order-critical details are Incomplete code — select 10 = PT 3/8 or 15 = PT 1/2; G and NPT options require their suffix, incomplete code — coil voltage is not specified, and normally closed, internally piloted diaphragm valve; 13 mm orifice; brass body; nbr seal.

PDF datasheet

Download the corresponding AirTAC PDF datasheet

Prepared from the AirTAC 2026A product database and official AirTAC technical documentation. Updated 2026-08-23. Independent product listing; no official or authorized-distributor status is claimed.
